XLVI Steamhammer Coffee Machine

Price
$8,250
Tax included. Shipping calculated at checkout.
Groups:
1 Group

Frequently Bought Together

Description

Di Pacci — PID High-Cup Commercial Espresso Machine

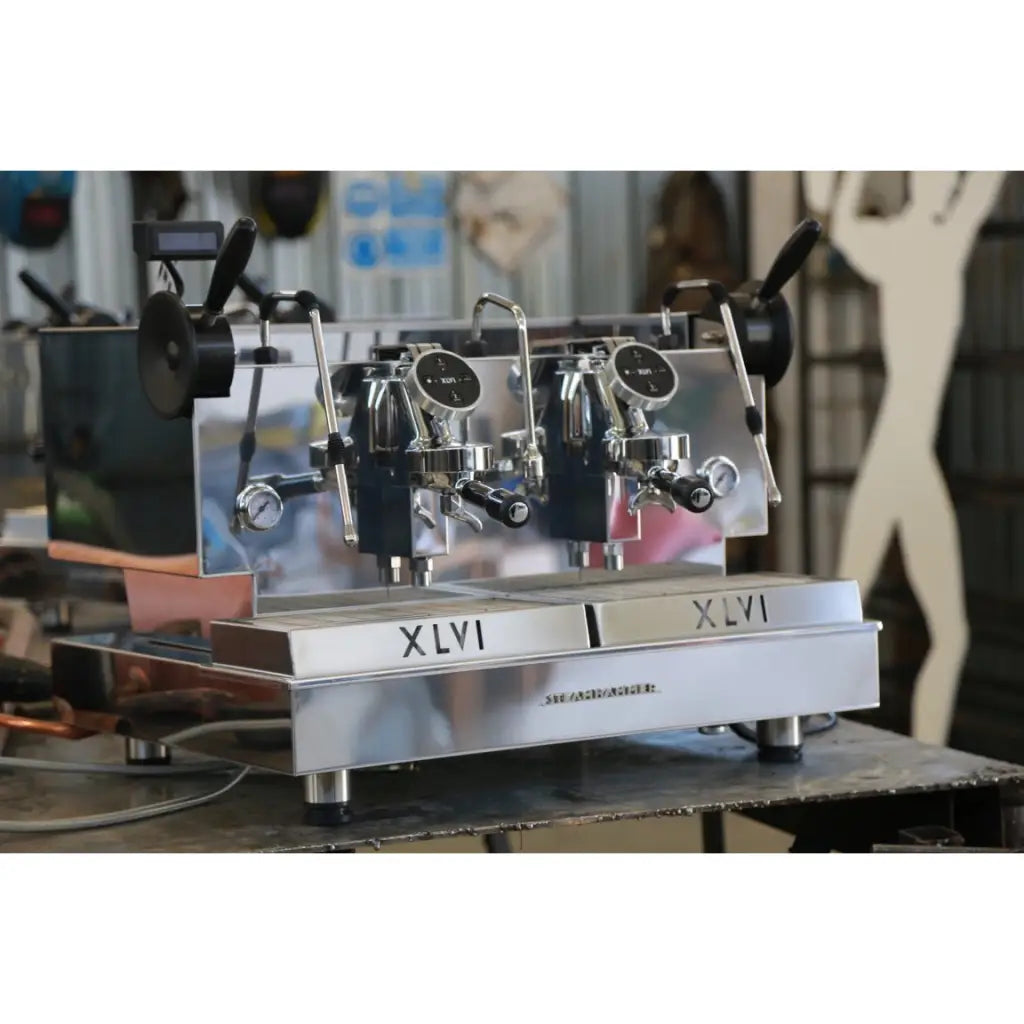

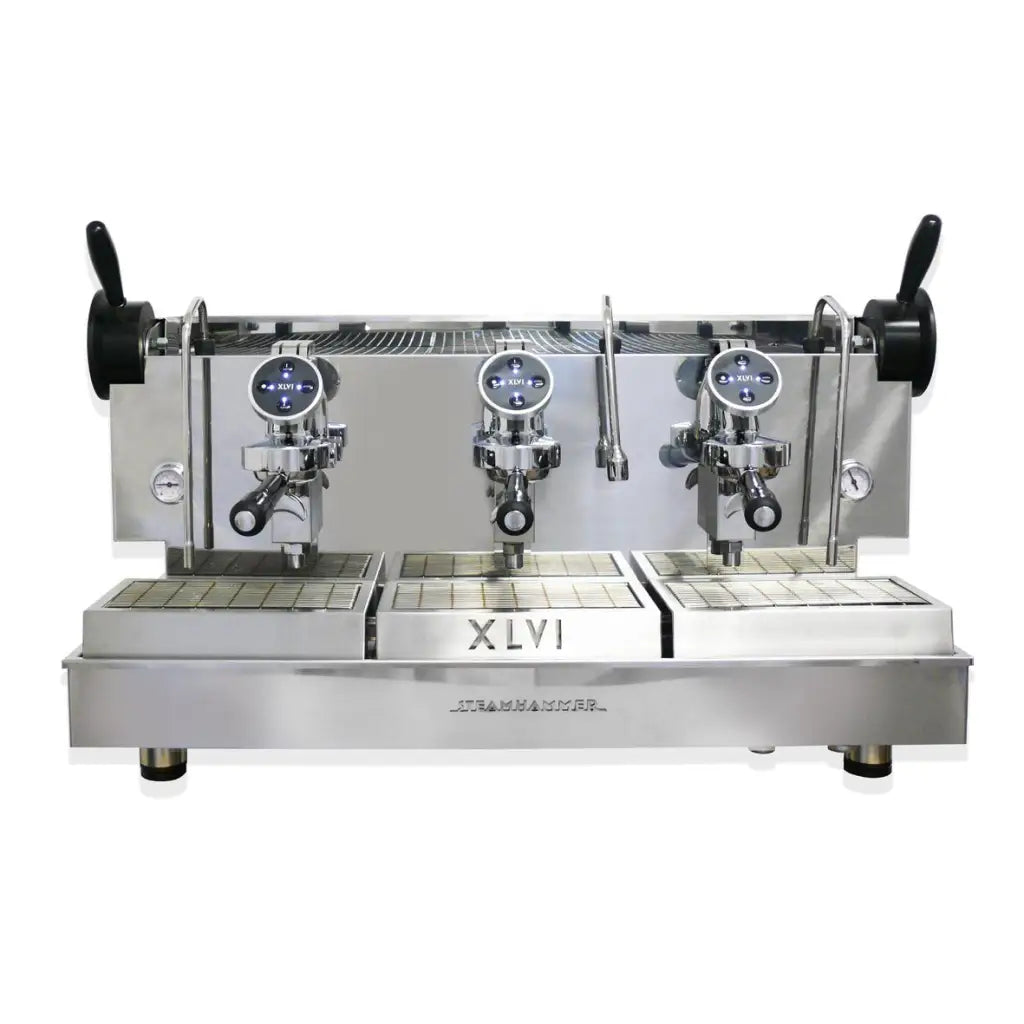

XLVI Steamhammer Coffee Machine

The XLVI Steamhammer is an Italian commercial machine built around milk: extra-long steam wands, lever steam and PID-controlled heat for a busy bar.

The XLVI Steamhammer is a PID-controlled commercial espresso machine in 1, 2 or 3 group versions, with a 6, 8 or 10 litre boiler to match. Each group has a six-dose programmable touchpad, the groups sit high enough for takeaway cups, and the extra-long, lever-activated steam wands reach the bottom of big milk jugs.

It's built from thick stainless steel and designed for heavy use in milk-driven cafes. An LCD display, automatic washing, an energy-saving mode and automatic switch-off take some of the routine off staff, while the lever steam valves give a smooth, controllable release that's easy to train.

PIDDigital boiler control
6 dosesPer group, volumetric
6 / 8 / 10 LBoiler, 1 / 2 / 3 group
15 / 20 / 25 ASingle phase, 1 / 2 / 3 group
🌡️ PID Heating 🥛 Extra-Long Wands 🎚️ Lever Steam 🎛️ 6-Dose Touchpad 🥤 High Groups 🧽 Auto Washing 🇮🇹 Made in Italy ✅ In Stock — Australia
Best for: 🥛 Milk-heavy cafes · 🥤 Takeaway trade · 🍽️ Restaurants · 🏪 Kiosks (1 group) · 🏢 Corporate cafes
Free standard shipping Australia-wide on orders over $200. Standard shipping is $14.95 for orders below $200. Same-day dispatch for orders placed before 2PM, with secured, tracked delivery. Free commercial machine installation for Sydney metro areas.
All XLVI Coffee Machines Finance Options Talk to an Expert — (02) 9758 0760

Key Features of the XLVI Steamhammer

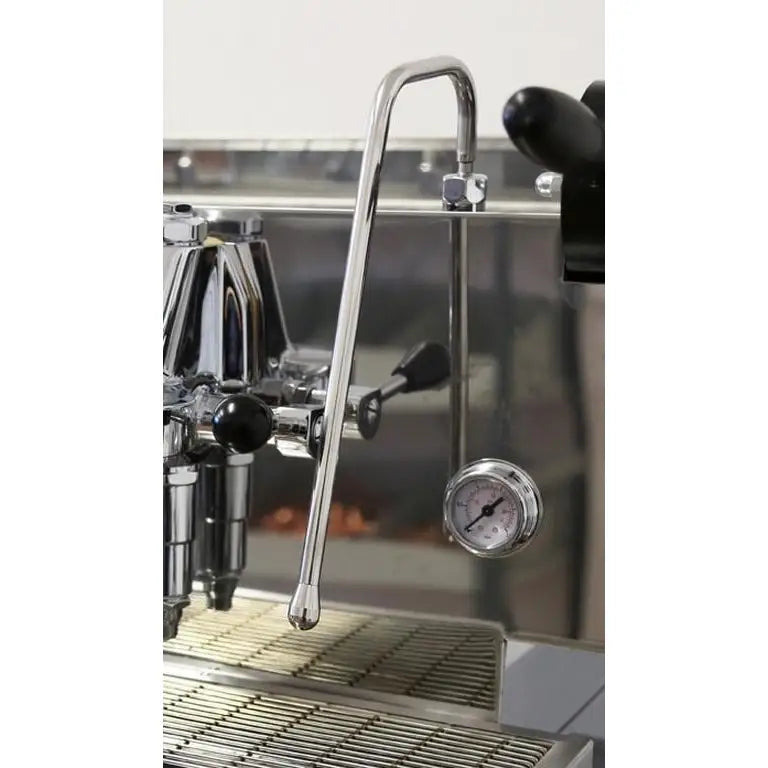

🥛 Extra-long steam wands

Reach the bottom of large milk jugs, so you can stretch a litre of milk at once.

🎚️ Lever-activated steam

A lever gives a smooth, controllable steam release that's quick to learn.

🌡️ PID heating

Digital temperature control holds the boiler steady through a rush.

🎛️ Six doses per group

A touchpad on each group stores six programmable volumetric doses.

🥤 High groups

Room under the spouts for takeaway cups.

♻️ Energy saving and auto washing

Energy-saving mode, automatic switch-off and automatic washing cut routine work and power use.

Built for Milk-Based Coffee

Most Australian cafe orders are milk drinks, so the steam side does more work than the coffee side. The Steamhammer is set up for that.

  • Extra-long wands let you steam bigger jugs without tilting them awkwardly.
  • Lever valves open fully in one motion, giving consistent steam pressure from the first second.
  • A PID-controlled boiler recovers steadily between jugs, so pressure doesn't sag in a rush.

The result is faster, more consistent milk texture across a busy service, without needing a premium-priced machine.

Complete Technical Specifications

Product Information
Brand XLVI (Italy)
Model Steamhammer
Configurations 1, 2 or 3 group
Warranty 12 months parts & labour via Di Pacci
Boiler & Groups
Boiler (1 / 2 / 3 group) 6 L / 8 L / 10 L
Heating control PID
Groups High groups for takeaway cups
Control
Dosing 6 programmable doses per group, touchpad
Display LCD
Cleaning Automatic washing
Energy Energy-saving mode, automatic switch-off
Steam & Water
Steam wands Extra long, lever activated
Hot water Hot water tap
Physical & Power
Width (1 / 2 / 3 group) 490 / 730 / 930 mm
Depth × height 570 × 600 mm
Weight (1 / 2 / 3 group) 48 / 60 / 80 kg
Electrical (1 / 2 / 3 group) 15 A / 20 A / 25 A single phase
Body Thick stainless steel
Installation Plumbed water, drain and dedicated circuit required

What's in the Box

  • XLVI Steamhammer espresso machine in your chosen group size
  • Portafilters and filter baskets (ask us to confirm the exact kit)

You'll also need a commercial grinder, water filtration and a licensed plumber and electrician. Free installation is available in Sydney metro areas.

XLVI Steamhammer: 1 vs 2 vs 3 Group

All three share the same controls and steam set-up. Choose by volume, bench space and power.

Feature 1 Group 2 Group 3 Group
Boiler 6 L 8 L 10 L
Electrical 15 A 20 A 25 A
Width 490 mm 730 mm 930 mm
Weight 48 kg 60 kg 80 kg
Best for Kiosks, offices Most cafes High-volume bars

Di Pacci recommendation: The 2 group suits most cafes; the 1 group is a strong kiosk or office machine if you have a 15 amp circuit. Don't bother with the Steamhammer if you want independent temperature per group for single origins; look at the BFC Rise multi-boiler instead.

Best Grinders for the XLVI Steamhammer

Match the grinder to your group count and daily volume.

Grinder Burrs Why it pairs well
Mahlkönig E65S 65 mm flat Fast on-demand dosing that keeps up with a 2 group bar
Fiorenzato F83 E Pro 83 mm flat Large burrs grind cool and quick for high-volume milk trade
Mazzer Kony S Electronic Conical Conical burrs give a fuller-bodied shot that carries through milk

Browse the complete commercial grinder range for more options.

Who This Machine Is For

✓ Ideal if you:
  • Run a milk-heavy cafe or kiosk
  • Want long, easy-to-use lever steam wands
  • Need takeaway cup clearance
  • Want PID control at a sensible price
  • Have a 15 A to 25 A circuit available
✗ Consider alternatives if you:

XLVI Steamhammer — Frequently Asked Questions

What power does the XLVI Steamhammer need?

The 1 group needs a 15 amp single phase circuit, the 2 group 20 amps and the 3 group 25 amps. A licensed electrician should install a dedicated circuit.

What boiler sizes does the Steamhammer have?

The boiler is 6 litres on the 1 group, 8 litres on the 2 group and 10 litres on the 3 group, with PID temperature control.

Is the XLVI Steamhammer a commercial machine?

Yes. It's a plumbed commercial machine built for heavy cafe use. The 1 group can suit a large office or home with a 15 amp circuit and plumbing.

How big is the XLVI Steamhammer 2 group?

It's 730 mm wide, about 570 mm deep and 600 mm high, and weighs 60 kg.

Does the Steamhammer fit takeaway cups?

Yes. The groups are raised to fit takeaway cups under the spouts.

Do you install the XLVI Steamhammer?

Yes. Installation is free in Sydney metro areas, and our technicians service XLVI machines. Call (02) 9758 0760.

Why Buy the XLVI Steamhammer from Di Pacci

Genuine Australian stock of XLVI equipment, an in-house service team with parts in stock, five showrooms (Sydney/Roselands, Melbourne, Perth, Port Macquarie, Queensland), in-store demonstrations, expert pairing advice, finance options, free shipping over $200, and a 12 month parts & labour warranty through Di Pacci. Free commercial machine installation is available for Sydney metro areas. Di Pacci Coffee Co. has been in coffee since 2003.
